7 Inch Stamped Steel LCA Lift Kit – Forged UCA – Bracket – N3 Struts – Chevy GMC 1500

Looking to add some serious attitude to your 2016-2018 GM 1500? Rough Country’s 7-Inch Lift Kit is just what you need. This lift kit gives your gm a meaner, lifted, & level stance while providing a smooth ride for unmatched highway & trail performance. It also adds room for larger wheels & tires, so you can make your truck stand out from the crowd. When changing a vehicle’s suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. This suspension kit combines the use of durable control arm brackets, differential brackets, & drop cross members to reduce cv angles & simulate factory angles all while achieving new heights. Featuring a set of upper strut spacers that offer uncompromised strength & rigidity, gaining lift height is no issue. Completing the rear of this suspension kit is a set of rear blocks, shocks, & U-bolts that allow you to retain factory-like geometry. This combined setup provides enough clearance to run 35″ tires without additional modifications. We didn’t want to limit you to one standard kit. Rough Country’s 7-inch kit is configurable w/ all the shock options that we offer. This allows you to choose which shock series you want! Ranging from our nitrogen-charged N3 shocks to our Vertex reservoir shocks the power to choose is in your hands. Our 7-inch kit features a set of high-quality, Forged Almn UCA designed to make alignment adjustments easier & durable rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball joint, w/ less stress, wear & tear. Requiring cutting & grinding required to install, an estimated timeframe of 8-10 hours is recommended to complete this full This full kit can be installed at home & can be completed efficiently & quickly! Limited Lifetime Replacement Warranty.

• Increased ground clearance
• Ball joints are fully greaseable
• Includes durable OEM style rubber bushings
• Optional N3 Loaded Struts Includes pre-loaded coil
• Maintains smooth
• Maintains stock track width
• Can run factory 20-inch wheels
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks
• Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem
• Control arms are made of forged aluminum for unsurpassed strength and durability
• No welding weak spots
• Offers more ball joint articulation over factory
• Includes POM ball joints for greater range of motion and easier installation

Attributes:

• GTIN: 00840269928420
• Brand Name: Rough Country

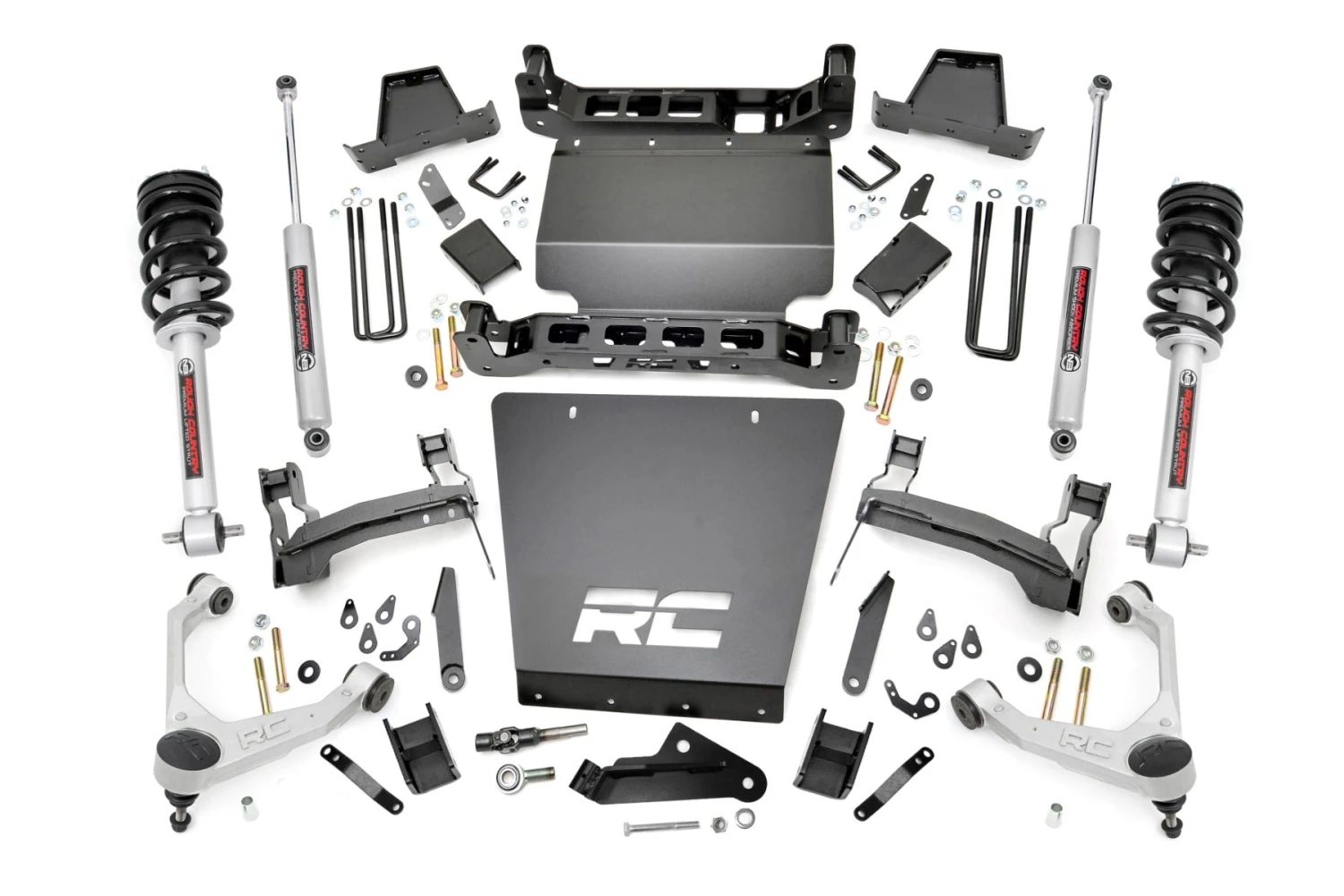

• Front Components: (2) Premium N3 Series Lifted Struts, Front Crossmember, Rear Crossmember, Control Arm Drop brackets, Forged Upper Control Arms, Differential Drop Brackets, Sway-bar Drop Brackets, Steering Extension, Steering Brace, Front Skid Plate, Lower Skid Plate, Hardware
• Install Time: 8-10 hours
• Rear Components: Fabricated Anti-Wrap Lift Blocks, Brake Line Relocation Brackets, U-bolts, Hardware
• Tire Wheel and Offset Info: 295 70R18:Factory 18:6×5.5:-:0.25 Spacer; 295 60R20:Factory 20:6×5.5:-:0.25 Spacer; 315 70R17:17×9:6×5.5:+12:-; 35×12.50R17:17×9:6×5.5:+18:-; 315 70R17:17×9:6×5.5:+18:-; 285 75R18:18×9:6×5.5:+12:-; 35×12.50R18:18×9:6×5.5:+18:-; 285 75R18:18×9:6×5.5:+18:-; 35×12.50R18:18×9:6×5.5:+19:-; 35×12.50R18:18×9:6×5.5:+20:-; 35×12.50R20:20×9:6×5.5:+12:-; 35×12.50R20:20×9:6×5.5:+18:-; 295 60R20:20×9:6×5.5:+18:-; 35×12.50R20:20×9:6×5.5:+20:-; 295 60R20:20×9:6×5.5:+20:-

Extended Information:

• Country of Origin: US
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 214.86 lb
