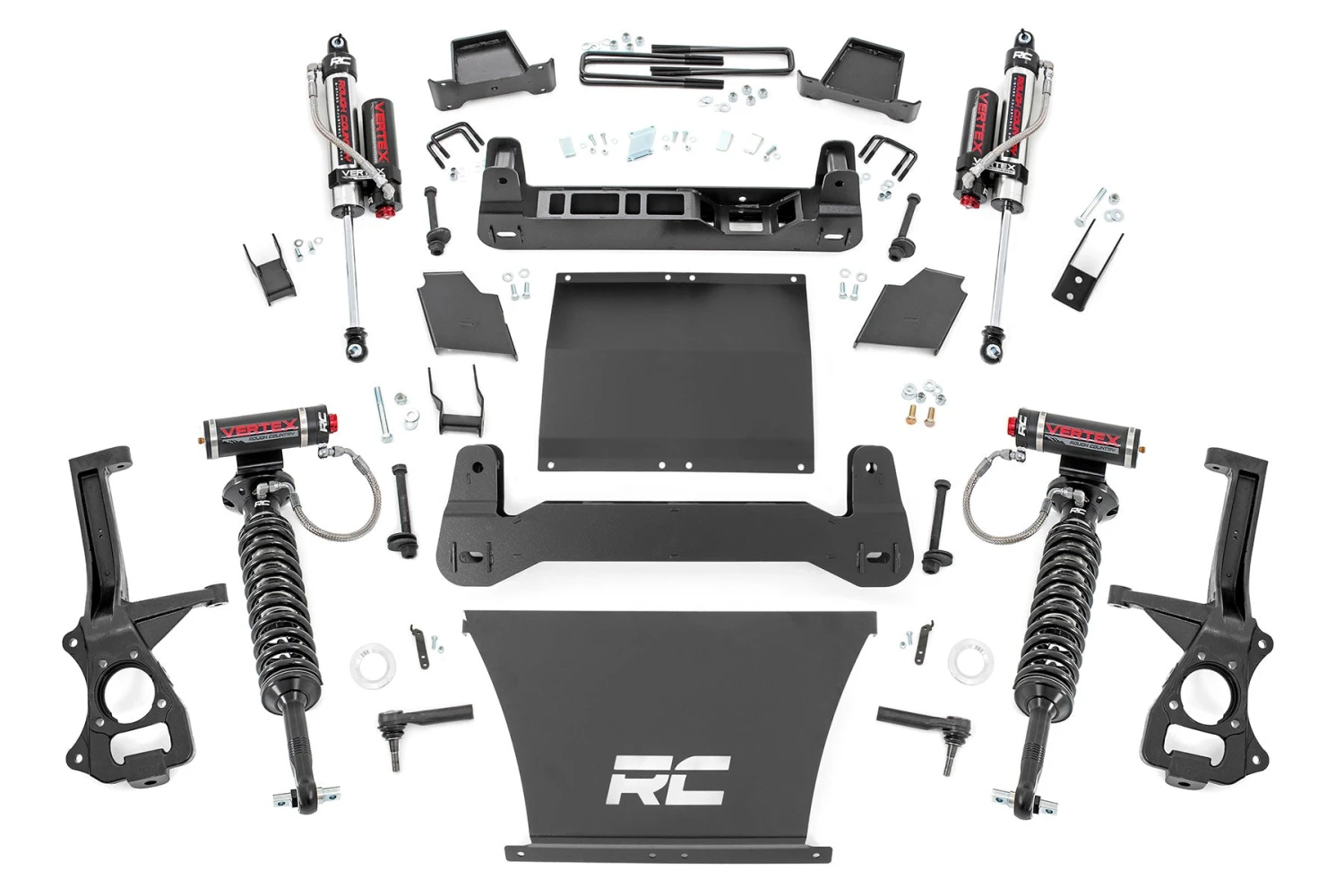

4 Inch Lift Kit – AT4 Trailboss – Vertex – Chevy GMC 1500 (19+)

• Lifts and levels the vehicle from front to rear
• High clearance crossmember design for optimal suspension geometry
• Includes cast knuckles for extreme durability
• Retains stock track width
• No strut disassembly required 100% precision laser cut materials using the latest computer aided design process
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Attributes:

• GTIN: 00843030185978
• Brand Name: Rough Country
• Front Components: Lifted knuckles, Front crossmember, Rear crossmember, CV spacers, Differential drop brackets, Differential skid plate, Sway-bar drop brackets, Hardware
• Install Time: 8-10 hours
• Rear Components: Fabricated lift blocks, Brake line brackets, U-bolts, Hardware
• Tire Wheel and Offset Info: 35×12.50R20:20×9:6×5.5:-12:-; 295 65R20:20×9:6×5.5:-12:-; 295 60R20:20×9:6×5.5:-12:-; 35×12.50R20:20×9:6×5.5:-6:0.25 Spacer; 295 65R20:20×9:6×5.5:-6:0.25 Spacer; 35×12.50R20:20×10:6×5.5:-25:Minor Trimming; 295 65R20:20×10:6×5.5:-25:-; 295 60R20:20×10:6×5.5:-25:-; 35×12.50R20:20×10:6×5.5:-24:Minor Trimming; 295 65R20:20×10:6×5.5:-24:-; 295 60R20:20×10:6×5.5:-24:-; 35×12.50R20:20×10:6×5.5:-19:Minor Trimming; 295 65R20:20×10:6×5.5:-19:-; 295 60R20:20×10:6×5.5:-19:-; 35×12.50R20:20×10:6×5.5:-18:Minor Trimming; 295 65R20:20×10:6×5.5:-18:-; 295 60R20:20×10:6×5.5:-18:-; 35×12.50R20:20×12:6×5.5:-44:Trimming Required; 35×12.50R22:22×10:6×5.5:-25:Minor Trimming; 35×12.50R22:22×10:6×5.5:-24:Minor Trimming; 35×12.50R22:22×10:6×5.5:-19:Minor Trimming; 35×12.50R22:22×10:6×5.5:-18:Minor Trimming; 35×12.50R22:22×12:6×5.5:-44:Trimming Required; Does NOT fit factory wheels; 0.25in wheel spacer may be required with some aftermarket wheel configurations.

Extended Information:

• Country of Origin: TH
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 318.37 lb
